Analog Universal Testing Machines
Analog Universal Testing Machines
images Send Inquiry
Request To Call Back

Analog Universal Testing Machines

Get a Price/Quote
MOQ : 1 Unit

Analog Universal Testing Machines Specification

  • Phase
  • Three Phase
  • Accuracy
  • 1% of indicated load
  • Control System
  • Analog controls; manual load application
  • Capacity
  • As per model: 100kN to 600kN
  • Operating Temperature
  • 10C to 45C
  • Power Consumption
  • 2 kW to 4 kW (model dependent)
  • Weight
  • 1500 kg to 2800 kg (varies by model)
  • Resolution
  • Analog scale up to 0.01 kN
  • Machine Speed
  • Variable 0.5 to 50 mm/min
  • Voltage
  • 415V AC
  • Speed Range
  • 0.5 to 50 mm/min
  • Dimension (L*W*H)
  • 2000 x 800 x 2100 mm (approx., may vary by model)
  • Stroke Length
  • Up to 250 mm (as per selected model)
  • Frequency
  • 50 Hz
  • Screw Size
  • Ball screw type, size as per capacity
  • Product Type
  • Analog Universal Testing Machine
  • Sensor
  • Strain gauge based load cell or pressure transducer
  • Application
  • Tensile, Compression, Bending and Shear tests on various materials
  • Features
  • Dual scale Analog display, High robustness, Manual/automatic controls, Precision loading
  • Color
  • Blue & Grey
  • Load Capacity
  • 100 kN, 200 kN, 400 kN, 600 kN (as per model)
  • Power Source
  • Electric
  • Power
  • 3 Phase, 415V, 50Hz
  • Automatic Grade
  • Semi-Automatic
  • Material
  • Heavy-duty steel frame, rust resistant
  • Display Type
  • Dual analog gauge
  • Crosshead Movement
  • Motorized, manually adjustable
  • Accessories
  • Set of spacers, bending jaws, extension rod
  • Safety Features
  • Overload protection, emergency stop switch
  • Grips/Fixtures
  • Supplied with standard specimen grips
  • Installation Service
  • On-site installation available
  • Oil Tank Capacity
  • Approx. 30 liters
  • Hydraulic System
  • Hydraulically operated with robust pump system for load application
  • Lubrication
  • Automatic lubrication system provided
  • Data Output
  • Manual reading from analog scale


Analog Universal Testing Machines Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Supply Ability
  • 10 Units Per Month
  • Delivery Time
  • 6-8 Week


About Analog Universal Testing Machines

Our organization is considered as a distinguished manufacturer, exporter and supplier of premium quality Analog Universal Testing Machines. The offered machines are manufactured under the supervision of our dexterous professionals by utilizing superior quality components with the help of modern techniques. These machines are widely used to test tension, traverse, compression, etc., of several metallic materials. Moreover, our respected clients can avail the provided Analog Universal Testing Machines at cost-effective prices from us.


Features:

  • Easy to operate
  • Hassle-free operations
  • Lower power consumption
  • Less maintenance


Other details:

  • Superior aesthetic finish
  • Optimum performance
  • Covers all metallic materials


Specifications:

  • Capacities: 100KN to 100KN (i.e. 10T to 1000T)
  • Loading accuracy: +/- 1% conforming to IS: 1828/ BS: 1610


Technical Specifications:

MODEL

TFUN-100

TFUN-200

TFUN-400

TFUN-600

TFUN-1000

Measuring Capacity(KN)

100

200

400

600

1000

1 Range (KN)

0 - 100

0 - 200

0 - 400

0 - 600

0 - 1000

Least Count (KN)

0.2

0.4

0.8

1

2

2nd Range (KN)

0 - 50

0 - 100

0 - 200

0 - 300

0 - 500

Least Count (KN)

0.1

0.2

0.4

0.5

1

3rd Range (KN)

0 - 25

0 - 50

0 - 100

0 - 120

0 - 250

Least Count (KN)

0.05

0.1

0.2

0.2

0.5

4Range (KN)

0 - 10

0 - 20

0 - 40

0 - 60

0 - 100

Least Count (KN)

0.02

0.04

0.08

0.1

0.2

Overall dimensions approx. (mm)

1950 x 800 x1850

2000 x 800 x 1900

2100 x 800 x 2060

2200 x 800 x 2400

2350 x 800 x 2700

Weight approx (kg)

1200

1300

2100

3100

4100


Common Specification For All Versions :

MODEL

TFUN-100

TFUN-200

TFUN-400

TFUN-600

TFUN-1000

TFUN-2000

Measuring Capacity (KN)

100

200

400

600

1000

2000

Max. Tensile Clearance at fully descended piston position (mm)

50 - 700

50 - 700

50 - 700

50 - 800

50 - 850

50 900

Max. Clearance for Compression Test (mm)

0 - 700

0 - 700

0 - 700

0 - 800

0 - 850

0 900

Distance between columns (mm)

450

500

500

600

750

850

Piston Stroke (mm)

150

200

200

250

250

300

Max. straining speed at no load(mm/min)

300

150

150

100

80

45

Power Supply

440,3ph,AC


Total H.P.

1.5

1.5

2.5

2.5

4.0

6.5


Common Specification For All Versions :

MODEL

TFUN-100

TFUN-200

TFUN-400

TFUN-600

TFUN-1000

TFUN-2000

Pair for compression plate dia. (mm)

120

120

120

120

160

220

For Round Specimen dia. (mm)

10 - 20

10 - 20

10 - 25

10 - 25

10 - 30

20 40

For Round Specimen dia. (mm)

20 - 30

20 30

25 - 40

25 - 40

30 - 50

40 60

For Round Specimen dia. (mm)

-

-

-

40 - 55

50 - 70

60 80

For Flat Specimen Thickness(mm)

0 - 10

0 - 10

0 - 15

0 - 15

0 - 22

0 22

For Flat Specimen Thickness(mm)

10 - 20

10 - 20

15 - 30

15 - 30

22 - 44

22 45

For Flat Specimen Thickness (mm)

-

-

-

-

44 - 65

45 70

Max. width of Flat Specimen(mm)

50

50

65

70

70

90

Adjustable Roller Support of width (mm)

150

150

150

160

160

200

Diameter (mm)

30

30

30

50

50

70

With Max. adjustable clearance (mm)

450

500

500

600

800

900

Punch tops of radius (mm)

6

6

10

16

16

30

Punch tops of radius (mm)

12

12

16

22

22

40


Precision Testing for Multiple Applications

This universal testing machine excels in a variety of mechanical tests such as tensile, compression, bending, and shear across a wide array of materials. Its ball screw mechanism and strain gauge-based load cell or pressure transducer ensure precise measurements, making it suitable for both research and industrial settings.


Safety, Durability, and Ease of Operation

Safety is paramount with built-in overload protection, an emergency stop, and an automatic lubrication system for smooth machine operation. Constructed from heavy-duty, rust-resistant steel and supplied with standard grips, the machine is built for high-usage environments, offering reliability and reduced maintenance requirements.


Flexible Capacity and Simple Data Output

Available in models from 100kN to 600kN, the machine accommodates various testing demands. The dual analog display enables manual reading of measurements with an accuracy of 1%, complemented by an adjustable speed range for different testing protocols.

FAQs of Analog Universal Testing Machines:


Q: How does the hydraulic system contribute to the testing process?

A: The hydraulic system, operated via a robust pump, generates the precise load required for material testing. It delivers controlled pressure to achieve accurate tensile, compression, bending, and shear results, ensuring uniform force application throughout the test.

Q: What are the main benefits of using a dual analog gauge display?

A: The dual analog gauge display provides clear and independent readings of load and displacement, allowing operators to monitor test progress closely. This enhances accuracy and reliability in manual data recording, crucial for quality control and research.

Q: When should the automatic lubrication system be serviced?

A: The automatic lubrication system is designed to reduce routine maintenance, but it should be inspected during regular machine servicing or if there is any sign of inconsistent movement or audible mechanical friction, as per the manufacturers maintenance schedule.

Q: Where is the machine typically installed and what installation support is available?

A: These machines are commonly installed in laboratories, quality control departments, and industrial test facilities. On-site installation is available and includes setup, calibration, and basic operational training by professional technicians.

Q: What is the process for changing grips or fixtures during different tests?

A: Changing grips or fixtures is straightforward: stop the machine, ensure no load is applied, release the current grips, and safely mount the required fixtures. Standard grips and additional accessories are supplied for fast adaptation to different test protocols.

Q: How is data output managed with this analog universal testing machine?

A: Data output is performed manually by reading the dual analog gauges. Operators record measurements directly, ensuring traceability and compliance with manual data reporting standards in mechanical testing.

Analog Universal Testing Machines
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Universal Testing Machines Category

Computerized Universal Testing Machine

Computerized Universal Testing Machine

Price Range 5000000.00 - 3000000.00 INR

Minimum Order Quantity : 1 Unit

Color : Blue & White

Power Source : Electric

Load Capacity : 100 kN

Features : Computerized control with userfriendly software, Data acquisition, Digital display for load and displacement, Safety interlocks

Get a Price/Quote

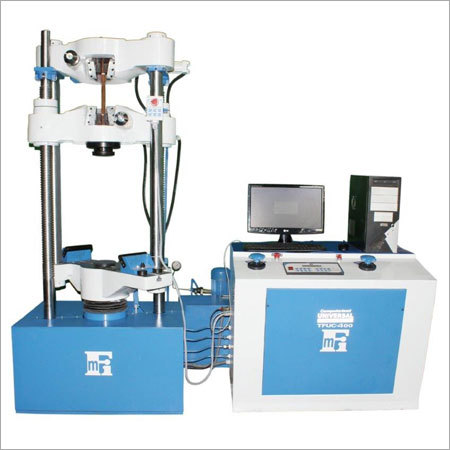

Head Hydraulic Grip Universal Testing Machine
